62 11 280 Remove and install/replace dashboard (i3 base, i3s)
WARNING:
High-voltage system - mortal hazard!
The following points must be strictly observed prior to starting work:
DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
Observe SAFETY INSTRUCTIONS ON HANDLING HYBRID OR ELECTRIC VEHICLES
The following points must be strictly observed prior to starting work:
DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
Observe SAFETY INSTRUCTIONS ON HANDLING HYBRID OR ELECTRIC VEHICLES
IMPORTANT:
Comply with notes on protection against electrostatic damage (ESD PROTECTION
).
Preliminary work needed:
- Refer to DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
- Shift steering column completely rearwards
- Refer to REMOVING AND INSTALLING/REPLACING UPPER SECTION OF STEERING COLUMN SHROUD .
- Refer to REMOVE AND INSTALL/REPLACE LOWER PART OF STEERING COLUMN SHROUD .

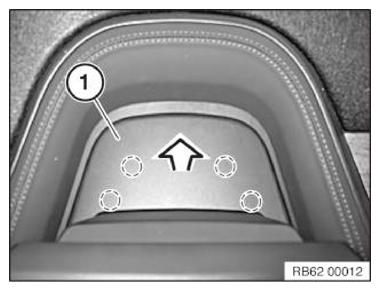

Unclip cover (1) in arrow direction.
Installation note:

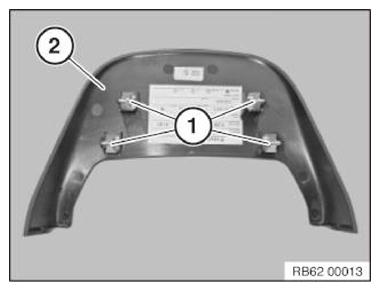

Clamps (1) on trim (2) must not be damaged or missing.

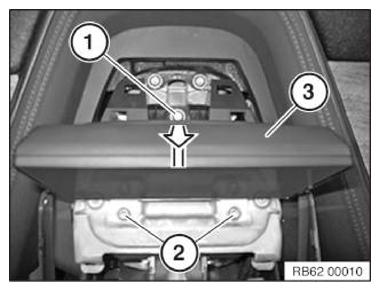

Remove screw (1).
Tightening torque 62 11 1AZ .
Slacken screws (2)
Tightening torque 62 11 1AZ .
Pry out dashboard in arrow direction.

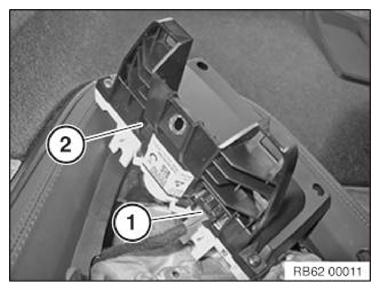

Disconnect plug connection (1) and remove dashboard (2).
Replacement:
Carry out VEHICLE PROGRAMMING/CODING .
Check values for Condition Based Service (CBS) and correct if necessary.
