51 16 383 Remove and install/replace damper for glove compartment

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Preliminary work needed:

• Refer to REMOVING GLOVE COMPARTMENT .

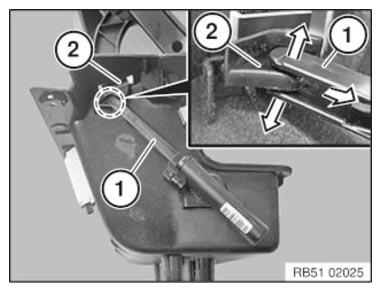

Unclip damper (1) from retainer (2) and slide back in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

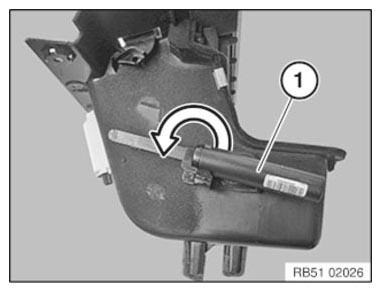

Turn damper (1) approx. 90° in arrow direction and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
