51 12 812 Replacing left deformation element (version with range extender, except i3s)

Preliminary work needed:

• Refer to REMOVING SERVICE CAP .
• Refer to REMOVING SUPPORT FOR BUMPER COVER .
• Refer to REMOVING REAR WHEEL .

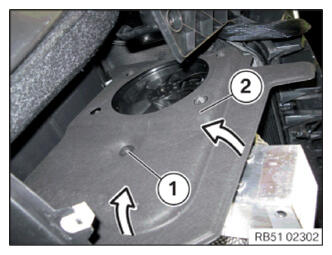

Release screw (1) and allow sensor (2) to hang downwards.

Installation note:

Ensure that the holder (3) is correctly positioned.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screws and nuts.

Tightening torque 18 30 5AZ and 18 30 6AZ .

Remove heat shield (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and screw (2).

Tightening torque 18 30 5AZ and 18 30 6AZ .

Feed out heat shield (3) downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Support exhaust system.

Unscrew the screws (1).

Tightening torque 18 20 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screw (1).

Fold up insulation (2) in bottom area.

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

Tightening torque 17 42 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

Tightening torque 51 12 6AZ .

Pull out deformation element.

Courtesy of BMW OF NORTH AMERICA, INC.
