Removing steering column shroud upper section

Preliminary work

Refer to ADJUSTING THE STEERING COLUMN POSITION .

NOTE: Perform the steps on the right and left side.

NOTE: TECHNICAL INFORMATION
The rubber plugs are reusable. Process to reuse the rubber plugs: remove the steering column shroud lower section and remove the rubber plugs.

Twist the steering wheel until the rubber plugs (1) in the steering column shroud becomes visible.
Press in the rubber plugs (1) using a standard tool towards the inside into the steering column shroud.

Courtesy of BMW OF NORTH AMERICA, INC.

Standard tools:

Screwdriver for Torx socket T15

Courtesy of BMW OF NORTH AMERICA, INC.

Screwdriver for Torx socket T15

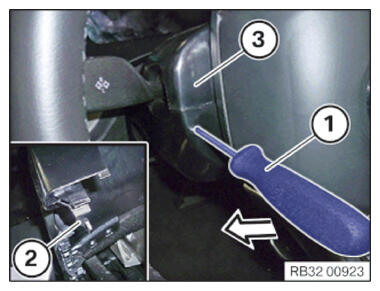

With the standard tool (1) lever the lug (2) inward in arrow direction and simultaneously push off the steering column shroud upper section (3) upwards.
Standard tools:

Courtesy of BMW OF NORTH AMERICA, INC.

Screwdriver for Torx socket T15

Courtesy of BMW OF NORTH AMERICA, INC.

Screwdriver for Torx socket T15
Unclip the gap cover from the brackets (1).
Unclip the steering column shroud upper section (2) at left and right from the guide and remove upwards.

Courtesy of BMW OF NORTH AMERICA, INC.
