Remove lower part of steering column shroud

NOTE: Perform the steps on the right and left side.

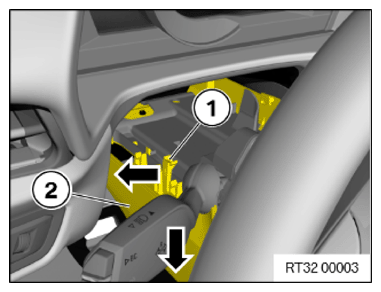

• Press the snap-in lug (1) outward in the arrow direction and unclip the steering column shroud lower section (2) downward in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

• Tilt steering column shroud lower section (1) downwards.
• Unlock plug connection (2) and disconnect.
• Loosen the cable clip (3).
• Release the wiring harness from the guide (1) on the steering column shroud lower section.

Courtesy of BMW OF NORTH AMERICA, INC.

• Clip out the gap cover on the steering column shroud lower section (1) from the brackets (2).
• Remove steering column shroud lower section (1).

Courtesy of BMW OF NORTH AMERICA, INC.
