Remove trailing link
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING FRONT LEFT OR RIGHT WHEEL .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING THRUST FIELD .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE FRONT BOTTOM SIDE COVER .
- Loosen screw (1) .
- Feed out the crash lever (2)
and remove.

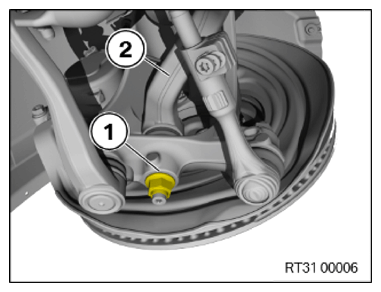

- Release the nut (1)
.NOTE: Counter-hold at the Torx socket.
- Feed out tension strut (2) and remove.
