(Removing the engine from the assembly jig)

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

• Remove and install heavy components with the aid of another person/other persons.

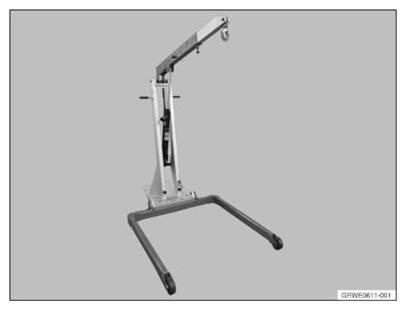

• Stage the workshop crane 2 220 718.

  Courtesy of BMW OF NORTH AMERICA, INC.

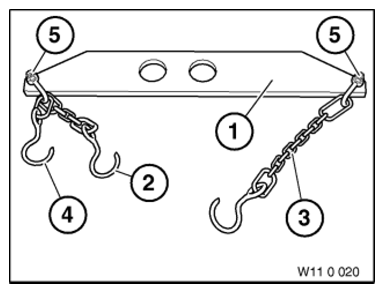

• Prepare the special tool (lifting equipment) 0 490 567 (11 0 020).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The workshop crane, lifting equipment, and mounting brackets on the engine must be connected to each other in such a way that the engine hangs straight when being lifted.

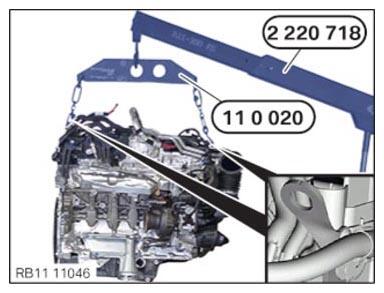

• Connect both hooks of the special tool 0 490 567 (11 0 020)  to the front and rear of the engine with the mounting brackets.
• Connect the workshop crane 2 220 718 to the special tool (lifting equipment) 0 490 567 (11 0 020).

  Courtesy of BMW OF NORTH AMERICA, INC.

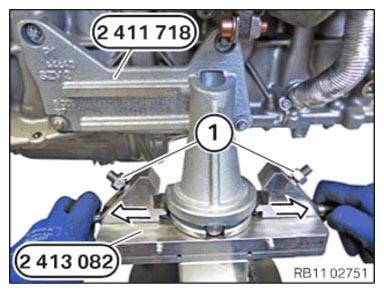

• Slacken nuts (1).
• Unclamp the clamp jaws of the special tool (motor mount) 2 413 082  in the direction of the arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

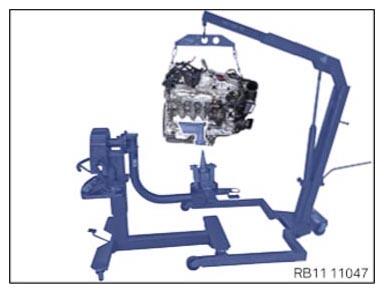

• Raise the engine slowly.

  Courtesy of BMW OF NORTH AMERICA, INC.

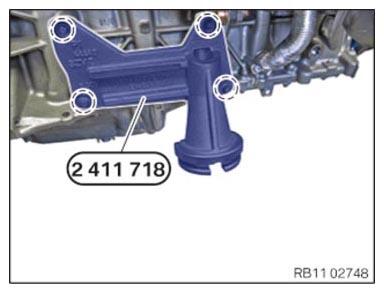

• Unscrew the screws (marks) and remove the special tool 2 411 718.

Courtesy of BMW OF NORTH AMERICA, INC.
