(Remove underbody protection at side right and left)

NOTE: Perform the steps on the right and left side.

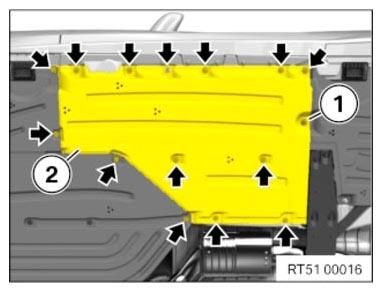

• Insert the undershield (1).
• Tighten all screws and nuts (arrows).

(TIGHTENING TORQUES SPECIFICATION)

Undershield
screw	Tightening torque	2.6 Nm
Plastic nut	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
