(Releasing the oil drain plug)
WARNING:
Hot fluids.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Catch and dispose of drained motor oil in a suitable collecting vessel. Observe country-specific waste disposal regulations.
Catch and dispose of drained motor oil in a suitable collecting vessel. Observe country-specific waste disposal regulations.

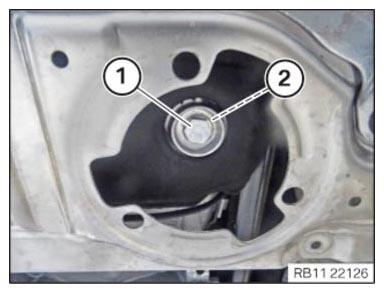

- Release oil drain plug (1).
- Feed out and remove the oil drain plug (1) with the sealing ring (2).
- Allow the motor oil to drain out fully.
