(Releasing the left and right tie rod ends from the swivel bearing)

NOTE: Perform the steps on the right and left side.

NOTE: RISK OF DAMAGE
Component damage caused by striking tools.
Brute force can result in component damage.

• Only use those tools intended for the work.

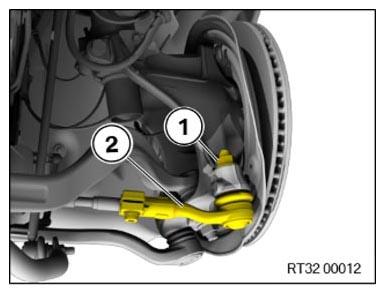

• Release the nut (1).
  NOTE: Counter-hold at the Torx socket.
• Release the tie rod end (2) from the swivel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.
