(Releasing the control arm below on the left and right from the swivel bearing)

NOTE: Perform the steps on the right and left side.

NOTE: RISK OF DAMAGE
Component damage caused by striking tools.
Brute force can result in component damage.

• Only use those tools intended for the work.

NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

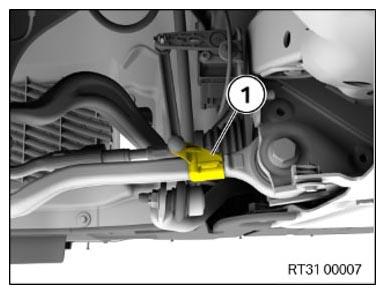

• Remove the connecting rod for the ride height sensor (1) from the wishbone.

  Courtesy of BMW OF NORTH AMERICA, INC.

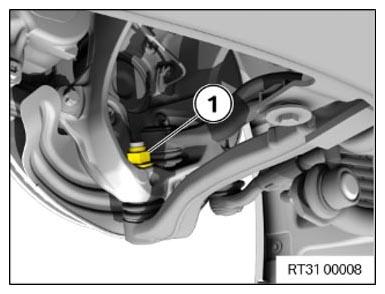

• Release the nut (1).
  NOTE: Counter-hold at the Torx socket.
• Release the bottom wishbone from the swivel bearing.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Otherwise, the rubber grommet can be damaged. The components must not be in contact.

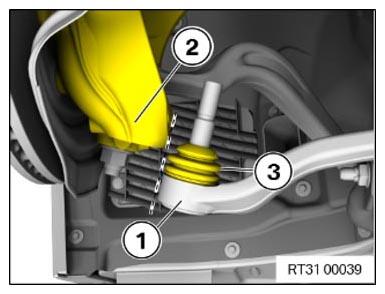

• Make sure the rubber grommet (3) on the bottom wishbone (1) does not get damaged by the swivel bearing (2).

Courtesy of BMW OF NORTH AMERICA, INC.
