(Mount the wishbone at the bottom left and right on the swivel bearing)

NOTE: Perform the steps on the right and left side.

NOTE: TECHNICAL INFORMATION
Otherwise, the rubber grommet can be damaged. The components must not be in contact.

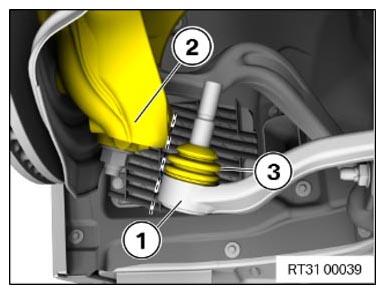

• Make sure that the rubber grommet (3) on the bottom wishbone (1) is not damaged by the swivel bearing (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the bottom wishbone on the swivel bearing.

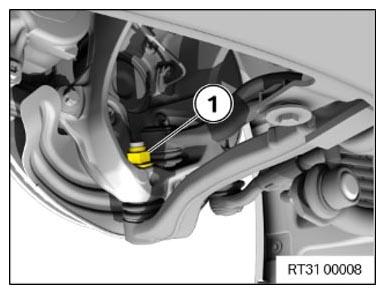

• Replace nut (1).

  Parts:  Nut

• Tighten nut (1).
  NOTE:

  (TIGHTENING TORQUES SPECIFICATION)




  Wishbone to swivel bearing
  M14 Replace nut.	tightening torque	175 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

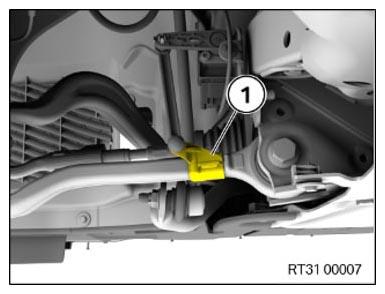

• Fasten the attachment rod for the ride height sensor (1) on the control arm.

Courtesy of BMW OF NORTH AMERICA, INC.
