(Installing starter motor)
Precondition
Acoustic cover of the oil pan has been removed.

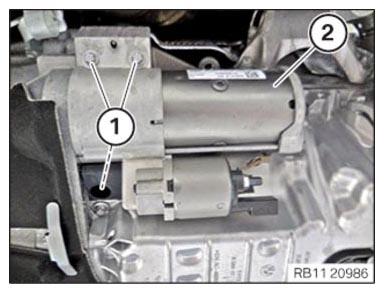

- Insert and install the starter motor (2).
- Tighten down screws (1).
(TIGHTENING TORQUES SPECIFICATION)
| Starter motor to crankcase |
| M8x60 |
Tightening torque |
19 Nm |
