(Attaching the left and right tie rod end on the swivel bearing)

NOTE: Perform the steps on the right and left side.

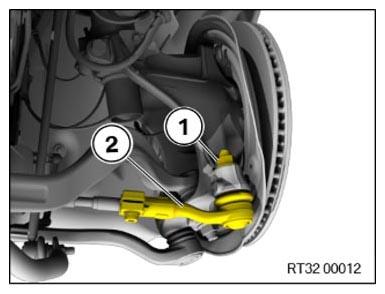

• Position the tie rod end (2) on the swivel bearing.
• Replace nut (1).

  Parts:  Nut

• Tighten nut (1).
  NOTE: Counter-hold at the Torx socket.

(TIGHTENING TORQUES SPECIFICATION)

Tie rod end to swivel bearing
M14 Replace nut.	Tightening torque	165 Nm
