(Topping up the motor oil)
NOTE:
RISK OF DAMAGE
Engine damage caused by excessively filling the engine with motor oil.
Filling an excessive quantity of motor oil may cause engine damage.
Engine damage caused by excessively filling the engine with motor oil.
Filling an excessive quantity of motor oil may cause engine damage.
- Observe the exact motor oil filling capacity.
- Allow engine oil to drip off when draining.
NOTE:
RISK OF DAMAGE
Damage on the gasoline particulate filter.
Vehicles that are equipped with a gasoline particulate filter must be operated with low-ash engine oil.
Damage on the gasoline particulate filter.
Vehicles that are equipped with a gasoline particulate filter must be operated with low-ash engine oil.
- Only use engine oils approved by BMW for the respective engine. See "Fluid Capacities" tab for the selected vehicle.
NOTE:
TECHNICAL INFORMATION
Observe the sign in the engine compartment! Only fill with approved engine oil of the correct (Society of Automotive Engineers) viscosity grade.
Observe the sign in the engine compartment! Only fill with approved engine oil of the correct (Society of Automotive Engineers) viscosity grade.
- Fill in motor oil at the oil filler neck.
(TECHNICAL DATA SPECIFICATION)
| Engine oil B46B20O1/B48B20O1 | ||
| Filling capacity, motor oil change with oil filter element | 5.75 l | |
Installing the oil filler cap

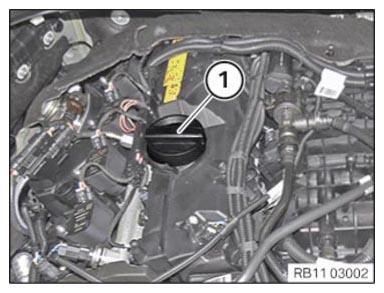

- Close oil filler cap (1).
