(Tightening the screw connection for the tension strut on the front subframe)
NOTE:
TECHNICAL INFORMATION
Tighten the threaded connection in the normal position.
Tighten the threaded connection in the normal position.

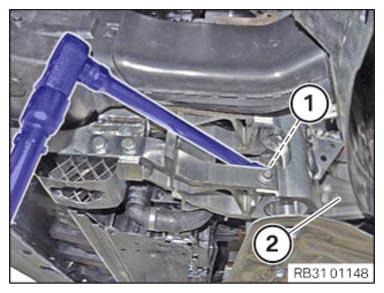

- Tighten the screw connection (1) for the tension strut (2) in a normal position.
(TIGHTENING TORQUES SPECIFICATION)
| Tension strut to front axle support | ||
| M12 Replace the bolt and lock nut. Tighten in normal position. |
Snug torque | 100 Nm |
| Angle of rotation | 90° | |
