(Removing the holder of the positive battery cable)

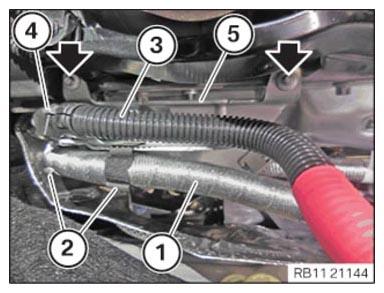

Remove positive battery cable (1) from clamps (2).

Release the positive battery cable (3) from the clamp (4).

Remove screws (arrows).

Feed out the bracket (5) of the positive battery cable and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

• Release the both cables (1) from the clamps (arrows).

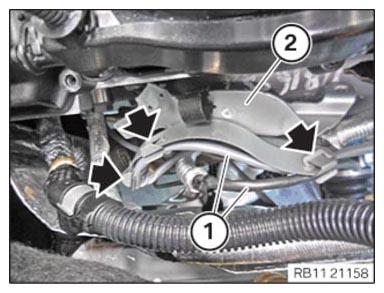

• Feed out and remove the bracket (2) of the positive battery cable.

Courtesy of BMW OF NORTH AMERICA, INC.
