(Removing the engine from assembly jig)
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.

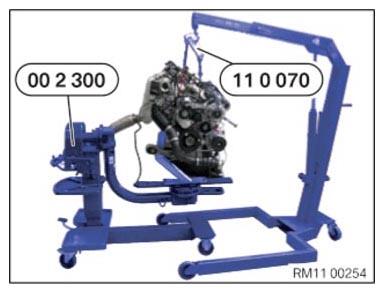

- Attach the workshop crane with the special tool 0 490 579 (11 0 070)
and position the engine (1).

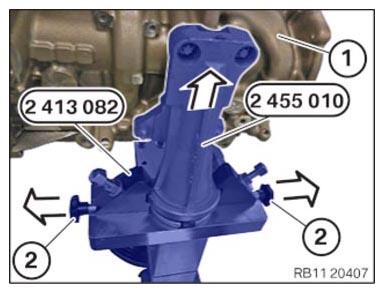

- Release nuts at the special tool 2 413 082 .
- Detach the holder (2) in the direction of the arrow.
- Release the engine (1) with the special tool 2 455 010 out of the special tool 2 413 082 in the direction of the arrow.

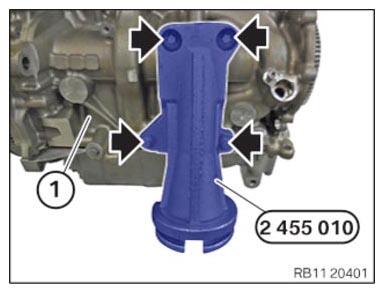

- Release the standard screws (arrows).
- Guide out and remove the special tool 2 455 010
at the engine (1).

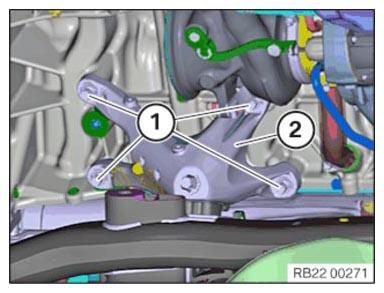

- Variant with rear wheel drive:
Install the engine support bracket (2).
Tighten down screws (1).

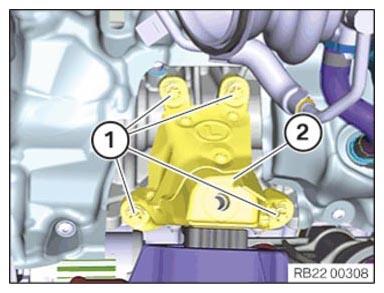

- Variant with all-wheel drive:
Install the engine support bracket (2).
Tighten down screws (1).
