(Removing the EPS wiring harness)
(Removing the EPS wiring harness)

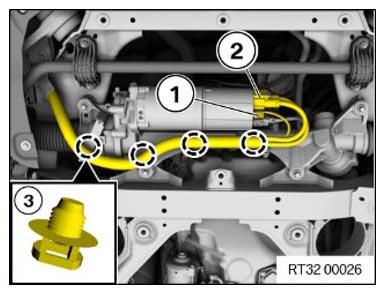

Unlock and disconnect the plug connections (1) and (2).
Release the vehicle wiring harness from the detents (3).
Courtesy of BMW OF NORTH AMERICA, INC.

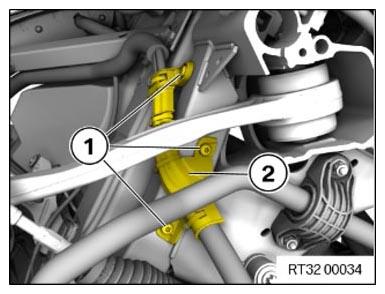

Loosen screws (1).
Release the cable clip (2) with the wiring harness from the front axle support.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
