(Remove the rear section of the wheel arch cover on the front left and right)

NOTE: Perform the steps on the right and left side.

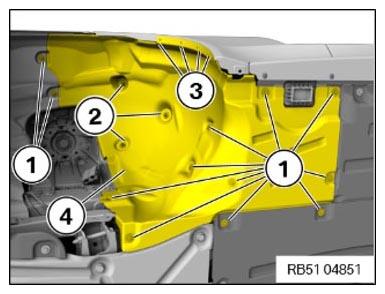

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

• Loosen screws (1) and (3).
• Loosen nuts (2).
• Feed out the rear section of the front wheel arch cover (4).
