(Releasing the coolant line)
NOTE:
The following step(s) must be performed if the specified component(s) is/are installed.

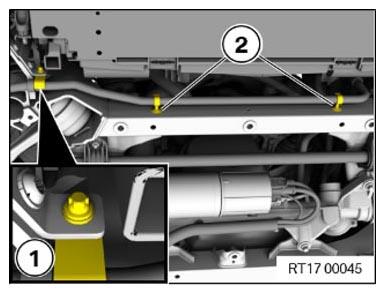

- Loosen the screw (1) on the left
and right.
- Release the coolant line from the clips (2) off the front subframe.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
