(Preparing the special tool)
NOTE:
TECHNICAL INFORMATION
In a profile rail pair, two profile rails are connected to one another by gearing.
In a profile rail pair, two profile rails are connected to one another by gearing.

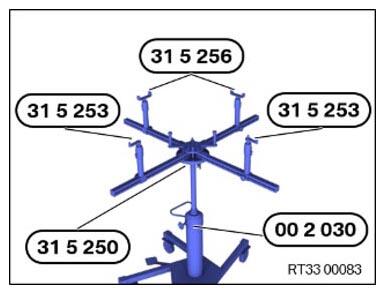

- With the help of a support person, fully attach special tool 0 495 567 (31 5 250) to special tool 0 490 133 (00 2 030) .
- Insert special tool 0 495 819 (31 5 253) in the telescopic supports of one profile rail pair.
- Insert special tool 0 495 822 (31 5 256) in the telescopic supports of the other profile rail pair.
