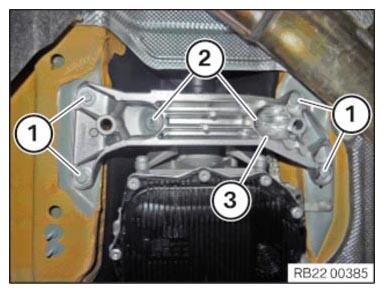

(Installing transmission cross member)
- Install the transmission cross member (3).
- Tighten nuts (2).
(TIGHTENING TORQUES SPECIFICATION)
| Transmission cross member to rubber mounts | ||
| M8 | tightening torque | 19 Nm |
- Tighten the screws (1).
(TIGHTENING TORQUES SPECIFICATION)
| Transmission cross member to body | ||
| M8 | tightening torque | 19 Nm |
- Remove transmission jack and, if appropriate, luggage strap.

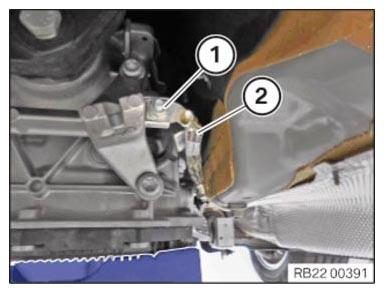

- Install the ground strap (2).
- Tighten down screw (1).
(TIGHTENING TORQUES SPECIFICATION)
| Grounding strap/grounding cable to transmission/body | ||
| M8 | Tightening torque | 19 Nm |
