(Installing the mount for the front bumper cover)

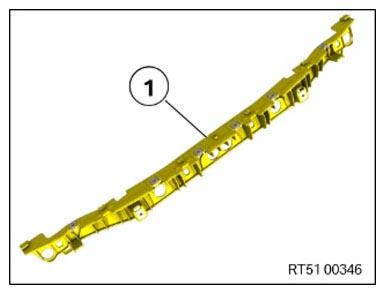

• Check for damage on the mount for the front bumper cover (1) and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

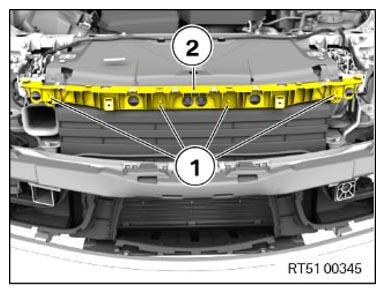

• Position the mount for the front bumper cover (2).
• Tighten down screws (1).
  (TIGHTENING TORQUES SPECIFICATION)



  Bumper cover, front, top
  Hexagon screw M6	Tightening torque	5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

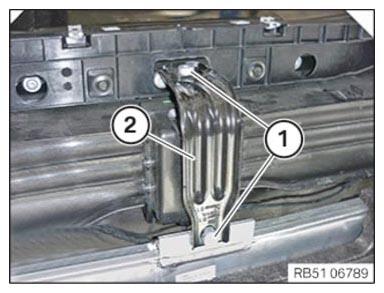

• Install the strut (2) and tighten the screws (1).

(TIGHTENING TORQUES SPECIFICATION)

Front strut
screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
