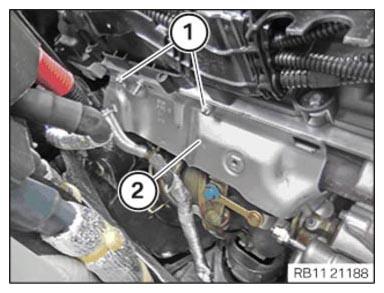

(Installing the heat shield on the cylinder head)
- Thread in the heat shield (2) and position.
- Tighten down screws (1).
(TIGHTENING TORQUES SPECIFICATION)
| Heat shield to cylinder head | ||
| M8 x 12 | Tightening torque | 19 Nm |

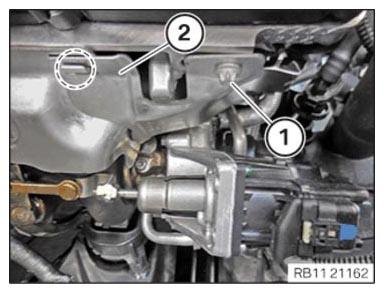

- Version without Real Driving Emissions 2 (-SA1DZ):
Feed the heat shield (2) into the marked area and install it.
Tighten down screw (1).
(TIGHTENING TORQUES SPECIFICATION)
| Heat shield to cylinder head | ||
| M8 x 12 | Tightening torque | 19 Nm |

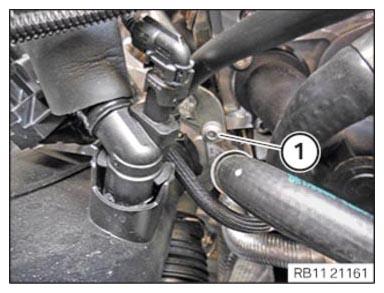

- Version without Real Driving Emissions 2 (-SA1DZ):
Tighten down screw (1).
(TIGHTENING TORQUES SPECIFICATION)
| Heat shield to trim strip | ||
| M6 x 12 | Tightening torque | 8 Nm |
