(Installing the engine on the assembly stand)

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

Variant with rear wheel drive:

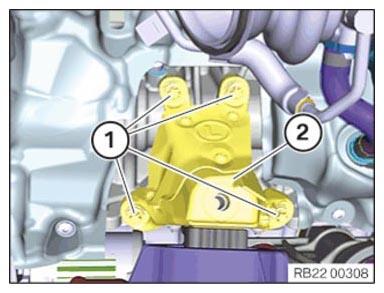

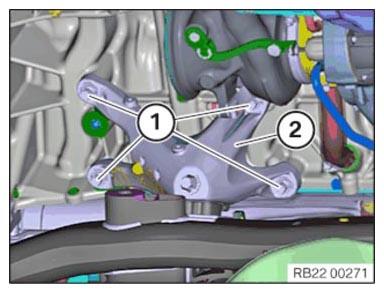

Loosen screws (1).

Remove the engine support bracket (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Variant with all-wheel drive:
Loosen screws (1).

Remove the engine support bracket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

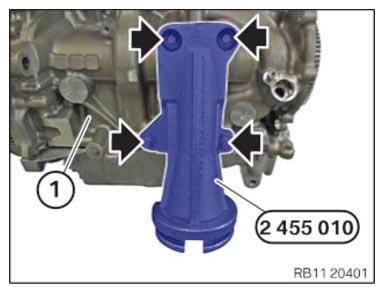

Position the special tool 2 455 010 on the engine (1).
Position and tighten the screws (arrows).

(TIGHTENING TORQUES SPECIFICATION)

Special tool 2 455 010 to crankcase
M10x30	Tightening torque	38 Nm

G16620664

Courtesy of BMW OF NORTH AMERICA, INC.

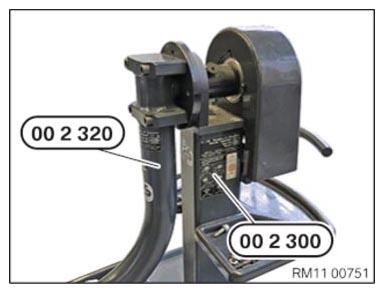

Position the assembly jig 0 495 187 (00 2 300) with the special tool 0 495 196 (00 2 320) .

Courtesy of BMW OF NORTH AMERICA, INC.

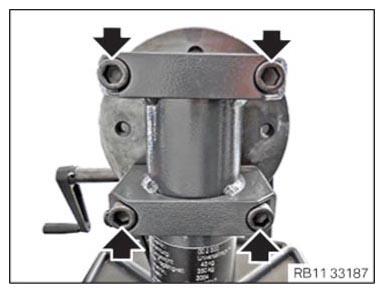

Tighten the screws (arrows).

(TIGHTENING TORQUES SPECIFICATION)

Special tool 00 2 320 to special tool 00 2 300
M14X95	Tightening torque	130 Nm

G16620666

Courtesy of BMW OF NORTH AMERICA, INC.

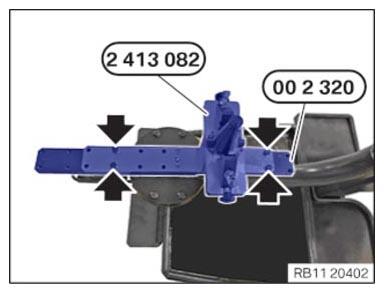

Screw special tool 2 413 082 together with special tool 0 495 196 (00 2 320) .
Tighten the screws (arrows).

(TIGHTENING TORQUES SPECIFICATION)

Special tool 2 413 082 to special tool 00 2 320
M12x65	Tightening torque	100 Nm

G16620667

Courtesy of BMW OF NORTH AMERICA, INC.

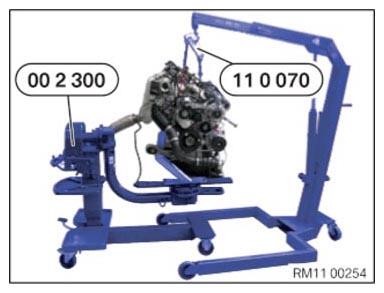

Position the workshop crane with the special tool 0 490 579 (11 0 070) and the engine on the special tool 0 495 187 (00 2 300) .

Courtesy of BMW OF NORTH AMERICA, INC.

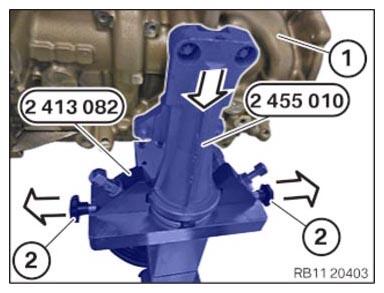

Detach the holder (2) in the direction of the arrow.
Position the engine (1) with the special tool 2 455 010 in the direction of the arrow on the special tool 2 413 082 .

G16620669

Courtesy of BMW OF NORTH AMERICA, INC.

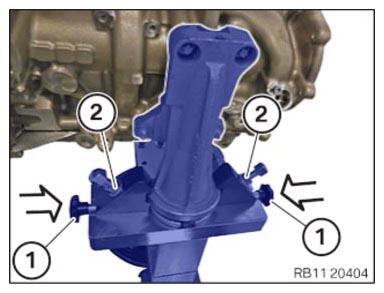

Lock the holder (1) in the direction of the arrow.
Tighten nuts (2).

G16620670
