(Installing center firewall lower part)

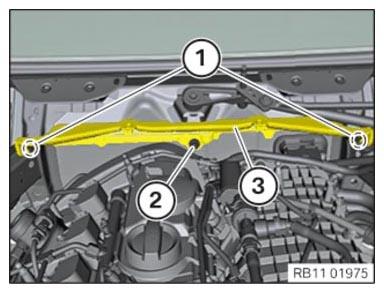

• Position the center cowl lower part (3).
• Tighten the nut (2) and the bolts (1).

(TIGHTENING TORQUES SPECIFICATION)

Firewall lower part on body
screw	Tightening torque	2.6 Nm
Plastic nut	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
