(Installing both trim panels for the body pillar)

NOTE: Description is for left component only.
Procedure on the right side is identical.

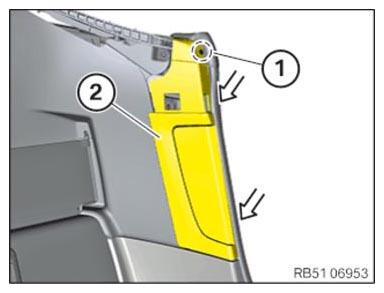

• Guide in and position the trim panel of the body pillar (2) from the upper front side.
• Tighten down screw (1).

(TIGHTENING TORQUES SPECIFICATION)

Trim panel for the body pillar to support
Screw	tightening torque	2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
