(Installing both rear side trim panels)
NOTE:
Description is for left component only.
Procedure on the right side is identical.

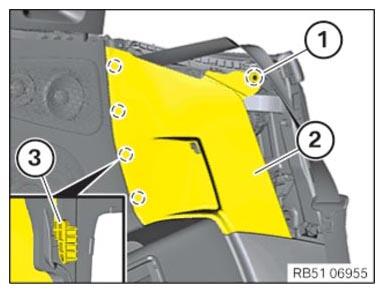

- Feed out the rear side trim panel (2) from above and hang it on the hooks (3).
- Tighten down screw (1).
(TIGHTENING TORQUES SPECIFICATION)
| Side trim panel to support |
| Screw |
tightening torque |
2 Nm |
