Installing the vibration damper
NOTE:
RISK OF DAMAGE
Radial shaft seal damage.
When fitting the vibration damper, the radial shaft seal may be damaged.
Radial shaft seal damage.
When fitting the vibration damper, the radial shaft seal may be damaged.
- It is imperative to use the special tool when fitting the vibration damper.
NOTE:
TECHNICAL INFORMATION
When removing/refitting or replacing the vibration damper, the radial shaft seal must also be replaced.
When removing/refitting or replacing the vibration damper, the radial shaft seal must also be replaced.

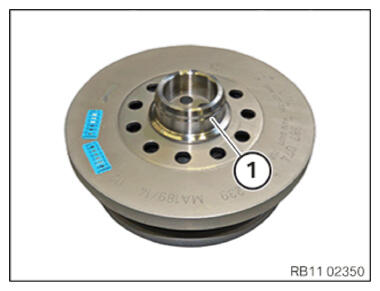

- Clean the sealing surface (1)
from oil and contamination.

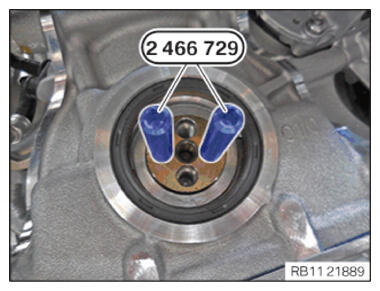

- Screw in the special tool 2 466 729
and hand-tighten it on the crankshaft.

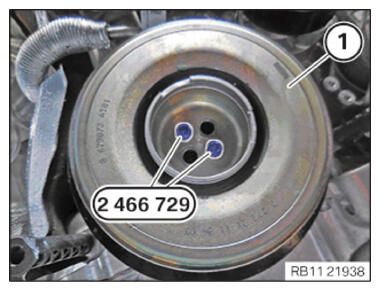

- Insert and install the vibration damper (1)
on the special tool 2 466 729
.
- Replace screws (1)
.
Parts: Screws

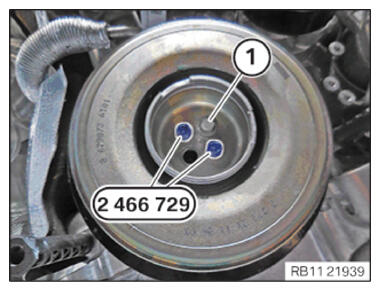

- Hand-tighten the bolt (1) .
- Guide the special tool 2 466 729
out and remove.

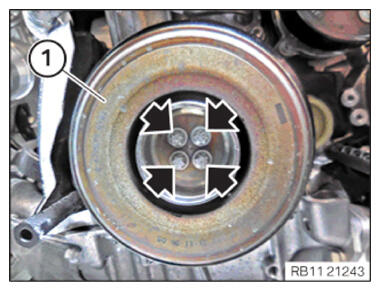

- Version A (without mild hybrid technology)
:
Replace all remaining screws (1) .
Position vibration damper (1) .
Tighten the bolts (arrows) on the vibration damper (1) .
TIGHTENING TORQUES SPECIFICATIONVibration damper with belt pulley to crankshaft M10x65
Replace screws.

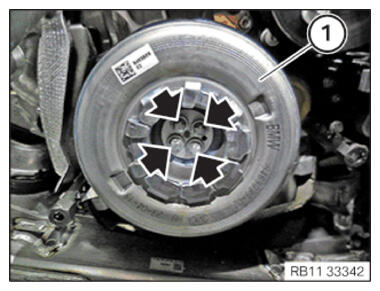

Tighten screws crosswise.1. Joining torque 40 Nm 2. Angle of rotation 60° 3. Angle of rotation 60° - Version B (with mild hybrid technology)
:
Replace all remaining screws (1) .
Parts: Screws
Position vibration damper (1) .
Tighten the bolts (arrows) on the vibration damper (1) .
TIGHTENING TORQUES SPECIFICATIONVibration damper with belt pulley to crankshaft M10x65
Replace screws.

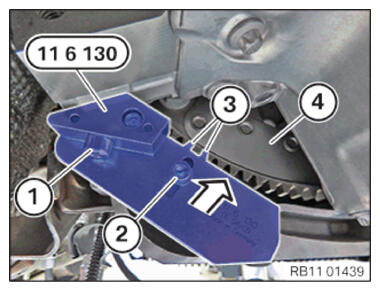

Tighten screws crosswise.1. Joining torque 40 Nm 2. Angle of rotation 60° 3. Angle of rotation 60° - Loosen screw (2) .
- Slide the counter support with the bolt (2) down until the teeth (3) are no longer engaged in the gearing of the flywheel (4) .
- Release the screw (1)
and feed out and remove special tool 0 496 595 (11 6 130)
.
Follow-up works
- Refer to INSTALLING STARTER MOTOR .
- Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
- Refer to ATTACHING THE ELECTRIC AUXILIARY COOLANT PUMP FOR THE CHARGE AIR COOLER AND/OR AIR CONDITIONING CONDENSER .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
- Refer to INSTALLING CHARGE AIR LINE .
- Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
