Move the engine to the installation position
Preliminary work
- Refer to MOVING THE HOOD TO THE SERVICE POSITION .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING STAND FOR THE HOOD GASKET LEFT AND RIGHT .
- Refer to REMOVING RIGHT FRONT-END STRUT .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING REAR UNDERBODY PROTECTION .

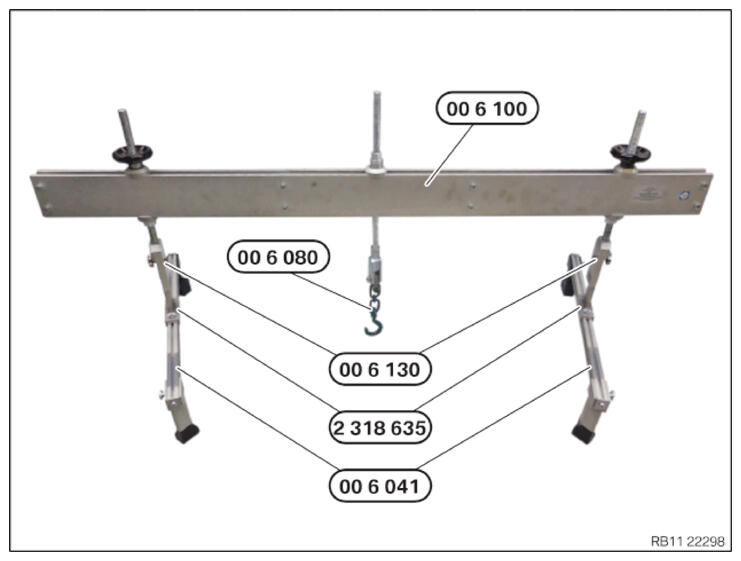

Prepared engine bridge
CAUTION:
Components connected to the engine joint or cross member.
Injury hazard!
Injury hazard!
- Check lifting eyes and engine mounting brackets for damage, e.g. cracks.
- Attach the component to correctly mounted engine joints or cross members only.
- Only lift component, do not move it longitudinally or transversely.
- Insert and position the special tool 2 459 012 at the cylinder head.
- Tighten the screws (1) of the special tool 2 459 012 .
TIGHTENING TORQUES SPECIFICATION
| Special tool to cylinder head | ||
| M8 | Tightening torque | 21.5 Nm |
- Carefully

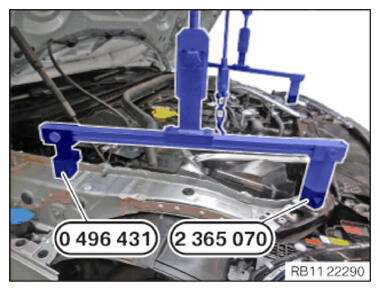

position engine bridge (1) with help from a support person.

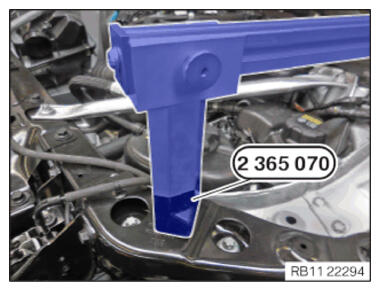

- Make sure the left special tool 2 365 070 is resting correctly on the cross connection.

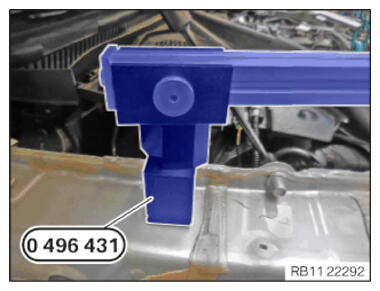

- Make sure the left special tool 0 496 431 (00 6 060) is resting correctly on the carrier support.

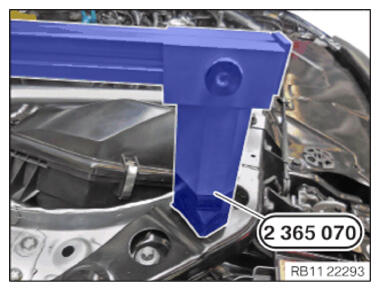

- Make sure the right special tool 2 365 070 is resting correctly on the cross connection.

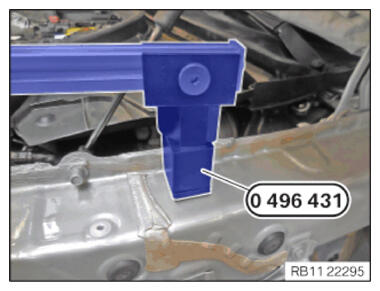

- Make sure the right special tool 0 496 431 (00 6 060)
is resting correctly at the carrier support.
- Connect the hook (1) 0 496 733 (00 6 080)
using special tool 2 459 012
.

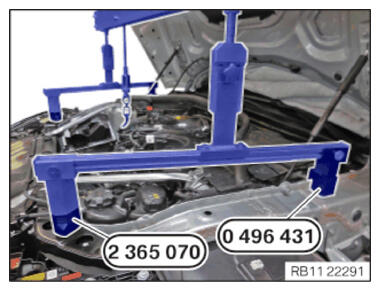

- Check that the right special tool 2 365 070 is resting correctly on the cross connection.
- Check that the right special tool 0 496 431 (00 6 060)
is resting correctly at the carrier support.
- Check that the left special tool 2 365 070
is resting correctly on the cross connection.
- Check that the right special tool 0 496 431 (00 6 060) is resting correctly at the carrier support.
- Release the screw (1) of the left engine mount from the bottom with a standard tool.
- Release the screw (1) of the right engine mount from the top with a standard tool.
- Raise the engine by turning the special tool 2 361 506 (00 6 103) (spindle) 10 mm.
