Removing the engine encapsulation on the exhaust side

Preliminary work

• Refer to MOVING THE HOOD TO THE SERVICE POSITION .
• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING THE REAR HOOD SEAL .
• Refer to REMOVING ACOUSTIC COVER AT REAR .
• Refer to REMOVING THE CLEAN AIR PIPE WITH THE RESONATOR .
• Refer to REMOVING CHARGE AIR LINE .
• Refer to REMOVING THE FRONT ACOUSTIC COVER FOR THE ENGINE .
• Refer to REMOVING THE LAMBDA OXYGEN SENSOR .
• Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
• Refer to REMOVING REAR UNDERBODY PROTECTION .
• Refer to REMOVING THRUST FIELD .
• Refer to DRAINING THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM .
• Refer to CONNECTING THE COOLANT LINES FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
• Refer to REMOVING THE RIGHT REAR TORSION STRUT .
• Refer to REMOVING CATALYTIC CONVERTER .
• Refer to REMOVING THE COOLANT FEED LINE FOR THE EXHAUST GAS TURBOCHARGER .
• Refer to REMOVING THE COOLANT RETURNING LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to REMOVING THE OIL RETURN LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to REMOVING EXHAUST TURBOCHARGER .

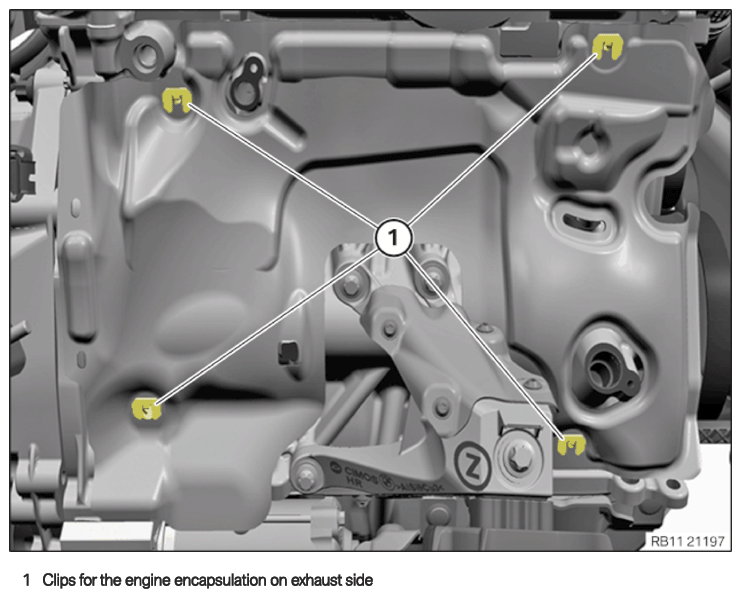

Clips for the engine encapsulation on exhaust side

Courtesy of BMW OF NORTH AMERICA, INC.

• Release the clips (1)  with a standard screwdriver 2 in the direction of the arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed out and remove the engine encapsulation (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.
