Installing the coolant feed line for the turbocharger
- Replace O-rings (1)
on the coolant feed line with the special tool 0 496 714 (00 9 030)
.
Parts: O-ring
Parts: O-ring

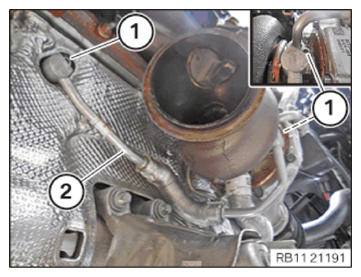

- Guide in coolant feed line (2) on the crankcase and install.
- Tighten down screw (1)
.TIGHTENING TORQUES SPECIFICATION
Coolant feed line to crankcase M6 x 12 Tightening torque 8 Nm - Guide in coolant feed line (2) on the turbocharger and install.
- Tighten down screw (1)
.TIGHTENING TORQUES SPECIFICATION
Coolant feed line/coolant return line to turbocharger M6 x 12 Tightening torque 8 Nm
Follow-up work
- Refer to INSTALLING CATALYTIC CONVERTER .
- Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to INSTALLING THE RIGHT REAR TORSION STRUT .
- Refer to INSTALLING LAMBDA OXYGEN SENSOR .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
- Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
