Installing the VANOS central valve of the intake adjuster

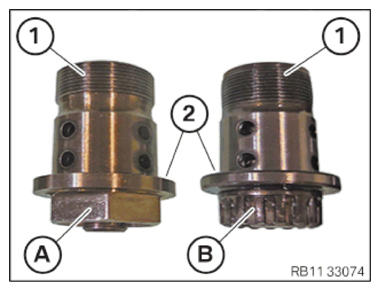

- Equipment specification A with the thread M22:
Coat the VANOS central valve (A) on the thread (1) with fresh engine oil.
- Coat the VANOS central valve (A)
on the contact surface (2)
with fresh
engine oil.
Equipment specification B with the thread M21:
- Coat the VANOS central valve (B) on the thread (1)
with fresh
engine oil.
Coat the VANOS central valve (B) on the contact surface (2) with fresh engine oil.

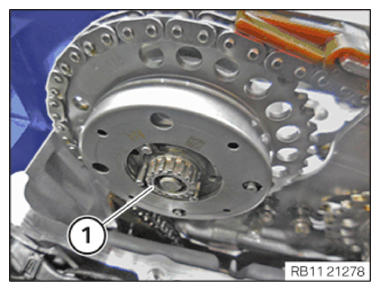

- Guide in and install the VANOS central valve (1)
of the intake adjuster.
- Tighten the VANOS central valve (1)
of the intake adjuster hand-tight.

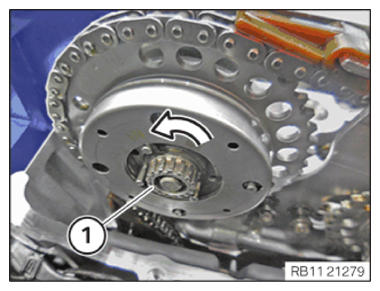

- Release the VANOS central valve (1)
of the intake adjuster 60° in the direction of the arrow
.
