Install chain tensioner
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Drain the oil chamber in the chain tensioner when reusing the chain tensioner.
- Place the chain tensioner on a level support, slowly compress in the arrow direction and relieve it.
- Catch and dispose of emerging engine oil.
- Repeat process twice.
- Replace the sealing sleeve (1)
.
Parts: Sealing sleeve
- Guide in and install the sealing sleeve (1)

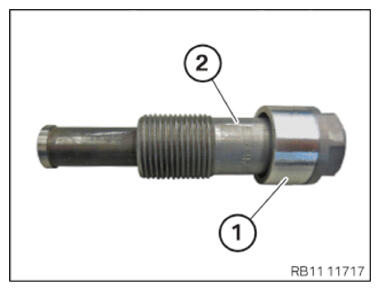

on the chain tensioner (2)
.

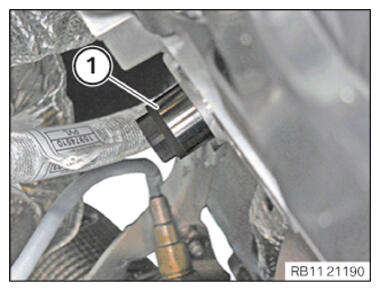

- Guide in and install the chain tensioner (1) .

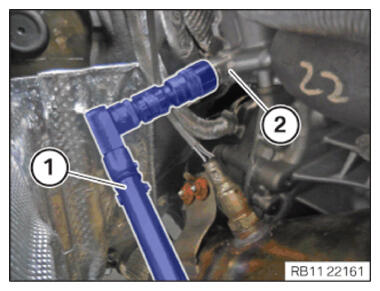

- Tighten chain tensioner (2) with commercially available tools (1) .
TIGHTENING TORQUES SPECIFICATION
| Chain tensioner to cylinder head | ||
| Chain tensioner | Joining torque | 20 Nm |
| Angle of rotation | 40° | |
Follow-up work
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE RIGHT FRONT-END STRUT .
