Body Equipment -- Repair (G29)
>>
51 76 Seals
>>
51 76 035 Removing and installing/replacing the mount of the hood seal on the left or right
>>
Installing the mounting for hood seal

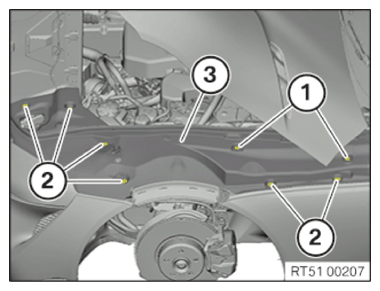

Installing the mounting for hood seal
Feed in the mounting
(3)
of the hood seal.
Ensure correct fit of the mounting
(3)
for hood seal on all adjoining components.
Clip in clips
(1)
.
Mount the expanding rivets
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
