Install the seat belt finisher strip
NOTE:
Description is for left component only. Procedure on the right side is identical.

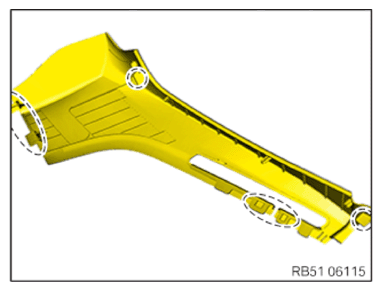

- Check the retaining lugs for damage in the marked areas.
The retaining lugs must not be damaged or missing.

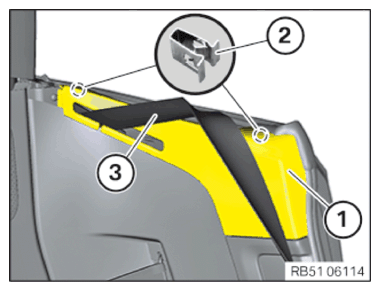

- Feed the safety belt (3) into the seatbelt finisher strip (1) .
- Insert the seat belt finisher strip (1)
from the top and fasten it to the clamps (2)
.
Follow-up work
