Install the rear bumper trim

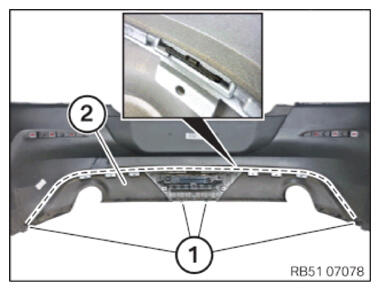

• Attach the rear bumper trim (2)  and engage at the detents along the dotted line.
• Mount the expanding rivets (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR BUMPER PANEL .
• Refer to INSTALLING TAIL LIGHT ON LEFT AND RIGHT SIDE PANEL .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING THE TRUNK COMPARTMENT LIGHT .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
