Install support for bumper cover at front bottom

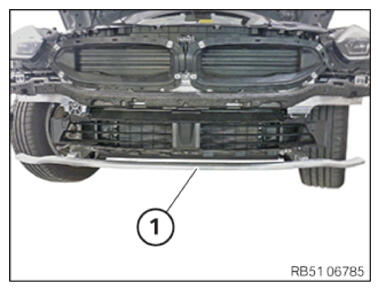

• Insert the support for the front bumper cover (1)  on the brackets.

  Courtesy of BMW OF NORTH AMERICA, INC.

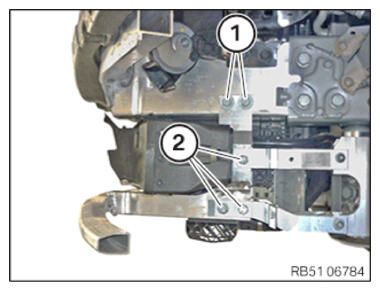

• Tighten down screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Support for bumper cover, front bottom, to top support
  Hexagon screw M8x20	Tightening torque	19 Nm

• Tighten down screws (2)  .
  TIGHTENING TORQUE SPECIFICATION



  Support for bumper cover, front bottom, to holder
  Hexagon screw M8x60	Tightening torque	28 Nm

Follow-up work

• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING FRONT BUMPER COVER .
• Refer to INSTALLING FRONT RADIATOR GRILL .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
