Remove the support for the front bumper cover at top

Preliminary work

• Refer to DEACTIVATING VEHICLE ELECTRICAL SYSTEM .
• Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to REMOVING SEAL FOR FRONT HOOD .
• Refer to REMOVING THE DECORATIVE FRONT GRILL .
• Refer to REMOVING FRONT BUMPER COVER .
• Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to REMOVING LEFT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
• Refer to REMOVING THE BOTTOM FRONT LEFT AND RIGHT COVER .

• Release the air duct (1)  at the detents (2)  and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.

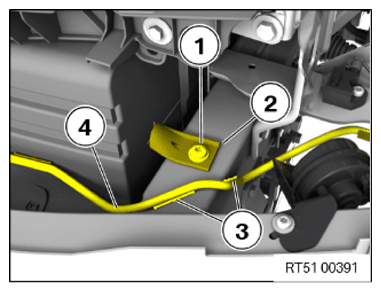

• Unscrew the screw (1)  on the reinforcement strut (2)  .
• Undo wiring harness (4)  at the clips (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen the screws (1)  and remove the strut (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release and remove holder (1)  with detents (2)  .
• Fix the cooling module on the lock support using suitable auxiliary materials.

  Courtesy of BMW OF NORTH AMERICA, INC.

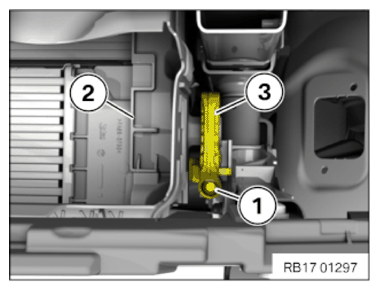

• Loosen screw (1)  .
• Raise cooling module (2)  slightly and remove the lower cooler module mount (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

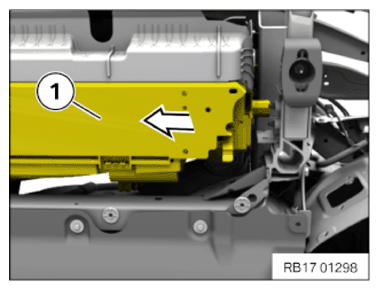

• Push and shift the cooling module (1)  carefully in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen (but do not fully remove) the screw (1)  by 2-3 turns using the special tool 2 464 950.

Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and disconnect plug connections (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1)  and (2)  and (3)  .
• Carefully guide out the support for the front upper bumper cover and remove it in a forward motion.

  The screws that remain inside the support remain hanging on the air flap control and must be carefully guided past the air flap control.

  Courtesy of BMW OF NORTH AMERICA, INC.
