Installing the support for the front upper bumper cover

• Guide in the support for the front upper bumper cover and install.
  NOTE: Perform the steps on the right and left side.

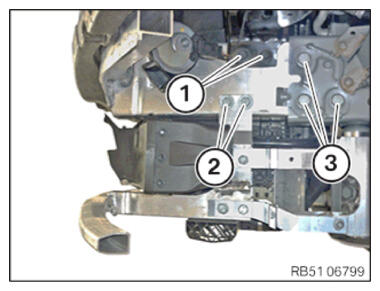

• Tighten down screws (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Deformation element to body
  Hexagon screw with flange	Tightening torque	100 Nm
  Replace screws.	Angle of rotation	180°

• Tighten down screws (2)  .
  TIGHTENING TORQUE SPECIFICATION



  Support for bumper cover, front bottom, to top support
  Hexagon screw M8x20	Tightening torque	19 Nm

• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATION



  Lock support to support for bumper cover
  M8x20 screw	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The setpoint torque deviates from the adjustable torque when using special tool 2 464 950 .
  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
• Converting the setpoint torque into the adjustable torque:

  (setpoint torque * L1)/L2 = adjustable torque

  L1 = length from the center of the grip to the reversible ratchet head

  L2 = length from the center of the grip to the center point of the ring on the special tool

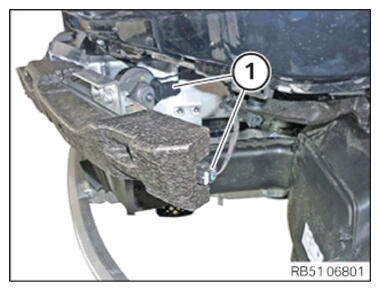

• Tighten the screw (1)  with the special tool 2 464 950 and the torque wrench.

  The special tool and torque wrench must be aligned with tightening the screw.

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Lock support to support for bumper cover
  M8x20 screw	tightening torque	19 Nm

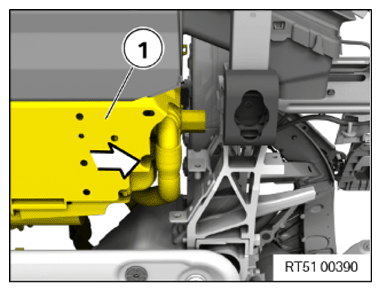

• Carefully position the cooling module (1)  in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.
• Position the lower cooler module mount (2)  and tighten the screw (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Bearing for coolant radiator to front subframe
  M6x30	Tightening torque	8 Nm

  NOTE: Description is for left component only. Procedure on the right side is identical.

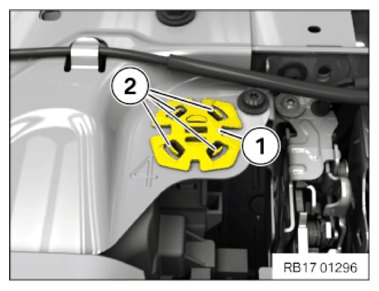

• Install the bracket (1)  and clip in with the detents (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

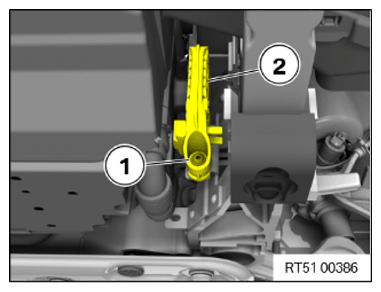

• Install the strut (2)  and tighten the screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Front strut
  screw	Tightening torque	8 Nm

  NOTE: Perform the steps on the right and left side.

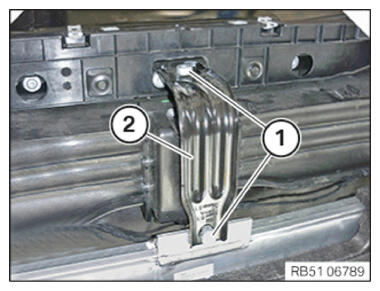

• Position reinforcement strut (2)  and tighten screw (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Front reinforcement strut
  M10x20 screw	Tightening torque	56 Nm

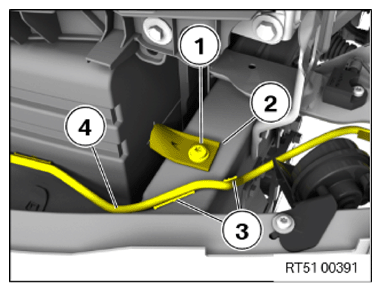

• Clip in wiring harness (4)  with the clips (3)  .
  NOTE: Perform the steps on the right and left side.
• Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.
• Install the air duct (1)  and engage the clips (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING COVERS AT FRONT BOTTOM ON LEFT AN RIGHT SIDES .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING FRONT BUMPER COVER .
• Refer to INSTALLING FRONT RADIATOR GRILL .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
