Installing the front brake pad wear sensor

Courtesy of BMW OF NORTH AMERICA, INC.

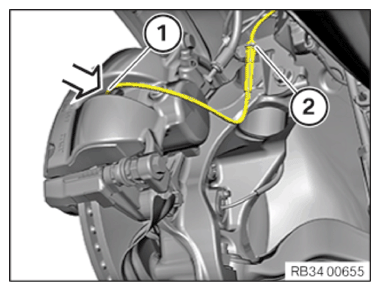

• Hook the brake pad wear sensor (1) to the holder (2).
• Install the brake pad wear sensor (1) in the arrow direction in the brake pad and ensure its correct fit.

Courtesy of BMW OF NORTH AMERICA, INC.

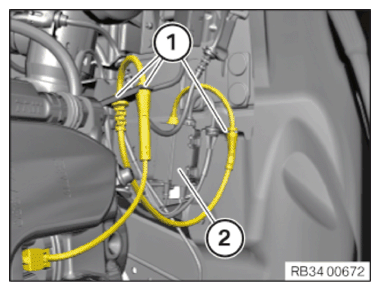

• Attach cable of brake pad wear sensor in holders (1).
• Connect connectors and lock.
• Close sealing cap (2).

Follow-up work

• Refer to ATTACHING THE FRONT LEFT WHEEL .
