Remove the trim for the head-up display

G16579930

Courtesy of BMW OF NORTH AMERICA, INC.

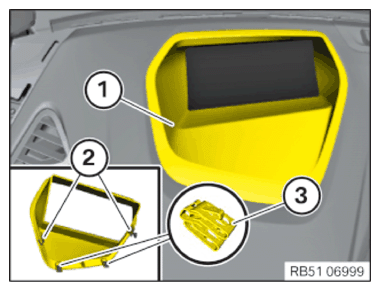

Release and remove the trim (1) with the special tool 0 496 569 (00 9 325) on the clamps (2) and (3).
