51 47 065 Removing and installing/replacing sill trim, front left or right (Outer)
>>
Installing the front sill trim
Installing the front sill trim

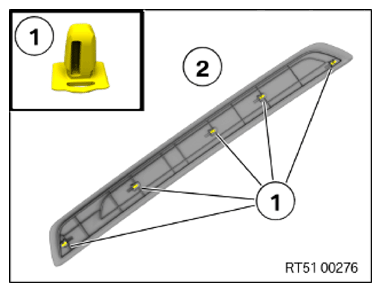

Check the clips
(1)
for damage and replace where required.
Remove the remaining clips
(1)
the body and mount them at the front sill trim
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.

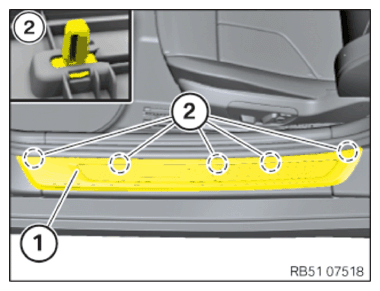

Position the front sill trim
(1a)
correctly and clip in at the clips
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
