Installing the rear wheel arch trim
NOTE:
TECHNICAL INFORMATION
To ensure optimal bonding, the bonding surfaces on the inner side of the wheel arch trim panels must not be painted!
You must apply the adhesive pad (two-sided adhesive tape) to the wheel arch trim panel before painting the wheel arch trim panel.
To ensure optimal bonding, the bonding surfaces on the inner side of the wheel arch trim panels must not be painted!
You must apply the adhesive pad (two-sided adhesive tape) to the wheel arch trim panel before painting the wheel arch trim panel.
- Remove adhesive residue at bonding surfaces (1) and (2) .
- Clean bonding surfaces (1)
and (2)
with solvent cleaner R2.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Adhere to the air drying time of 2 min.
- Pull protective film off adhesive pad (double-sided adhesive tape).

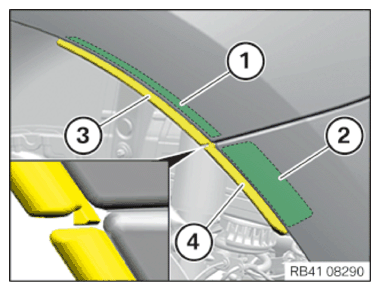

- Position wheel arch trims (3) and (4) according to the illustration and press down tightly in the area of the bonding surfaces (1) and (2) .
Follow-up work
- Refer to REMOVING THE REAR WHEEL ARCH COVER .
- Refer to INSTALLING REAR LEFT OR RIGHT WHEEL .
