51 13 061 Replacing front wheel arch trim on the side panel, left or right (if applicable)
>>
Removing the front wheel arch trim
Removing the front wheel arch trim
Raise hood.

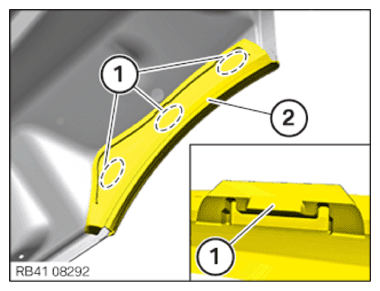

Release latch mechanisms
(1)
and remove the wheel arch trim
(2)
(top).
Courtesy of BMW OF NORTH AMERICA, INC.

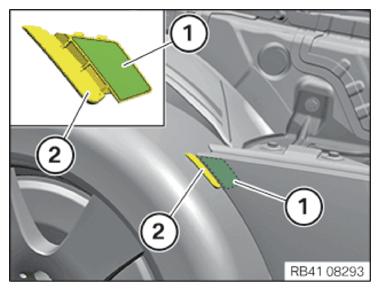

Carefully heat the bonding surface
(1)
with a hot air blower and remove the wheel arch trim
(2)
(below).
Courtesy of BMW OF NORTH AMERICA, INC.
TECHNICAL DATA SPECIFICATION
Heating using hot air blower
Surface temperature
40°C... 50°C
Courtesy of BMW OF NORTH AMERICA, INC.
