Installing the center trim at the bottom

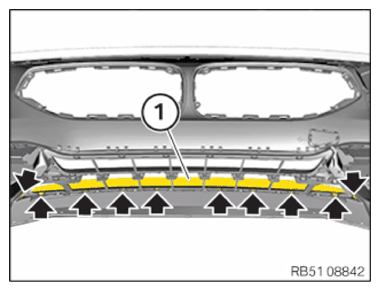

• Correctly position the trim (1)  and engage at the detents (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

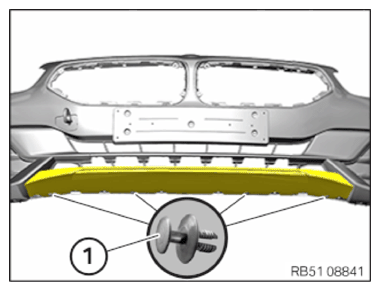

• Mount the expanding rivets (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT BUMPER COVER .
• Refer to INSTALLING FRONT RADIATOR GRILL .
• Refer to INSTALLING THE FRONT HOOD SEAL .
