51 11 Bumper, Front
>>
51 11 180 Removing and installing/replacing ornamental grille in front bumper cover
>>
Removing the air inlet trim strip on the ornamental grille
Removing the air inlet trim strip on the ornamental grille

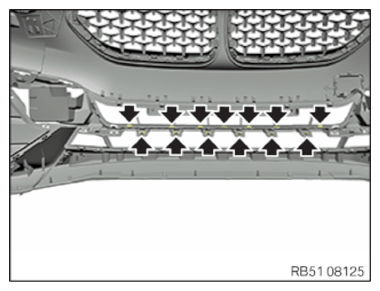

Release the central air inlet trim strip (arrows) at the latch detents.
Courtesy of BMW OF NORTH AMERICA, INC.

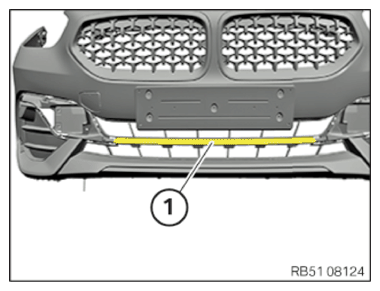

Feed out air inlet trim strip
(1)
and remove.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
