Removing the instrument cluster (KOMBI)
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .
Electrostatic discharge .
Damage to or destruction of electrical components .
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to ADJUSTING THE STEERING COLUMN POSITION .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE KOMBI TRIM .
- Refer to REMOVING THE SIDE PANEL ON THE LEFT DASHBOARD .
- Refer to REMOVING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
- Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .
- Refer to REMOVING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
- Lift the steering column shroud upper section (1) a little and disengage it from the guide (2).

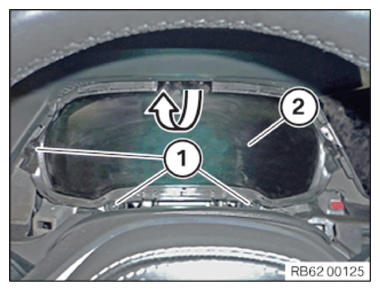

- Loosen screws (1).
- Guide out the instrument cluster (KOMBI) (2) in the arrow direction.
- Unlock and disconnect the plug connections (1) on the instrument cluster (KOMBI) (2).
