Installing the speaker trim on the center bass
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.

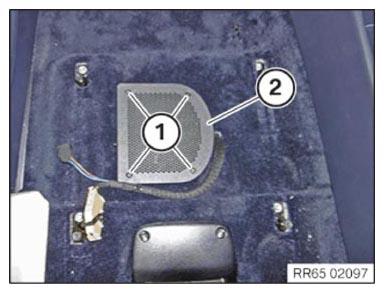

- Attach and correctly position the speaker trims on the central bass (2).
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Central bass speaker trim |
| screw |
Tightening torque |
2 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
